End-to-end architecture
TracePermit is an Agentic Visibility & Control (AVC) proof of concept. Java is the sole supported backend. React provides the default read-only evidence console and a separate authenticated approval inbox for independent review and explicit simulated execution. Every supported simulated side effect is evaluated before simulator execution. See what works today for the separate qualification profiles.

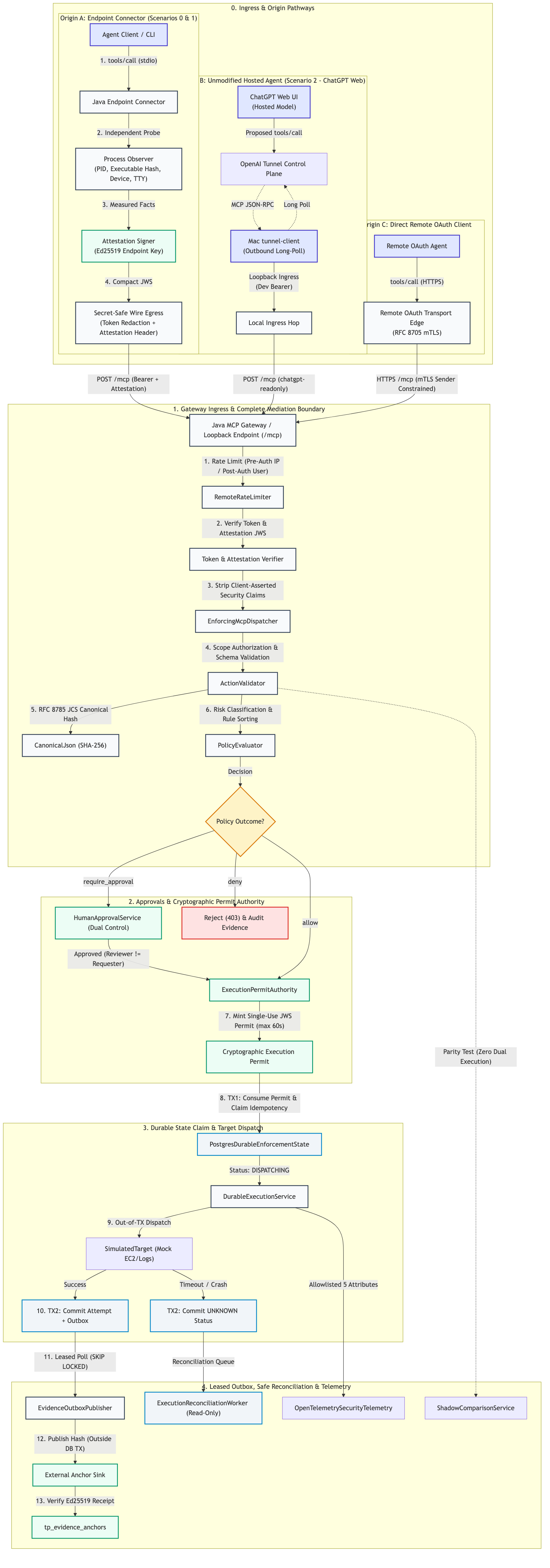

End-to-end architecture diagram
The model sends its proposed tool call through the client/provider integration; TracePermit does not intercept the model's private reasoning before the model service runs. At the controlled MCP boundary, a trusted adapter verifies credentials and derives subject, actor, tenant, trigger, and provenance. Tool arguments cannot declare themselves authenticated or approved.
Data flow and lifecycle stages
Origin-specific attribution
| Origin | Trusted evidence in the POC | Limit |
|---|---|---|
| Local stdio connector | Independently observed process facts, signed proof bound to the MCP request and credential fingerprint | Development enrollment and replay state are not a managed fleet solution |
| Hosted ChatGPT via tunnel | Verified OAuth access token identifies an issuer-qualified human; hosted client is the actor | Qualified for one Auth0/ChatGPT/tunnel simulator composition only |
| Signed scheduled workload | Operator-trusted workload signature and narrowed delegation chain | In-process adapter, not a production scheduler route |
Causal lineage answers what led to a call. Authority delegation answers what a signer authorized the next actor to do. They are never conflated.
Action and execution boundary
The current action contract is contracts/json-schema/intercepted-action-v1.schema.json. tracepermit-canonical-json-v1 defines deterministic serialization for hash-bound proofs; it is not a CloudEvents envelope. The Java gateway classifies the normalized action and its gateway-owned sequence history, evaluates policy, and issues a request-bound permit only for an allowed effective action. A sanitizer creates a distinct derived action and sends it through policy again. Approval is exact-request bound and requires an independent authorized reviewer in the durable profile.
The durable PostgreSQL profile claims permits and records attempts before simulator I/O. When the outcome is uncertain, read-only reconciliation can append a confirmed result; the effect is not blindly retried. This does not guarantee exactly-once effects in an independent real target. The lookup worker is a separately tested foundation, not an automatic service in the browser launcher; see Flow 9.
The browser/history, local startup and recovery containment diagrams expand the architecture into its supported local operating paths.
For implementation details and explicit production gaps, read the high-level design and capability matrix.
